KULITE AUTOMOTIVE TRANSDUCERS GO A LONG WAY

• Power Train Testing 动力总成测试

  (涵盖发动机、变速箱、传动轴等核心部件的系统性检测)


• Air Bag Testing 安全气囊测试

• Power Steering Systems 助力转向系统

• Anti-Lock Braking Systems 防抱死制动系统

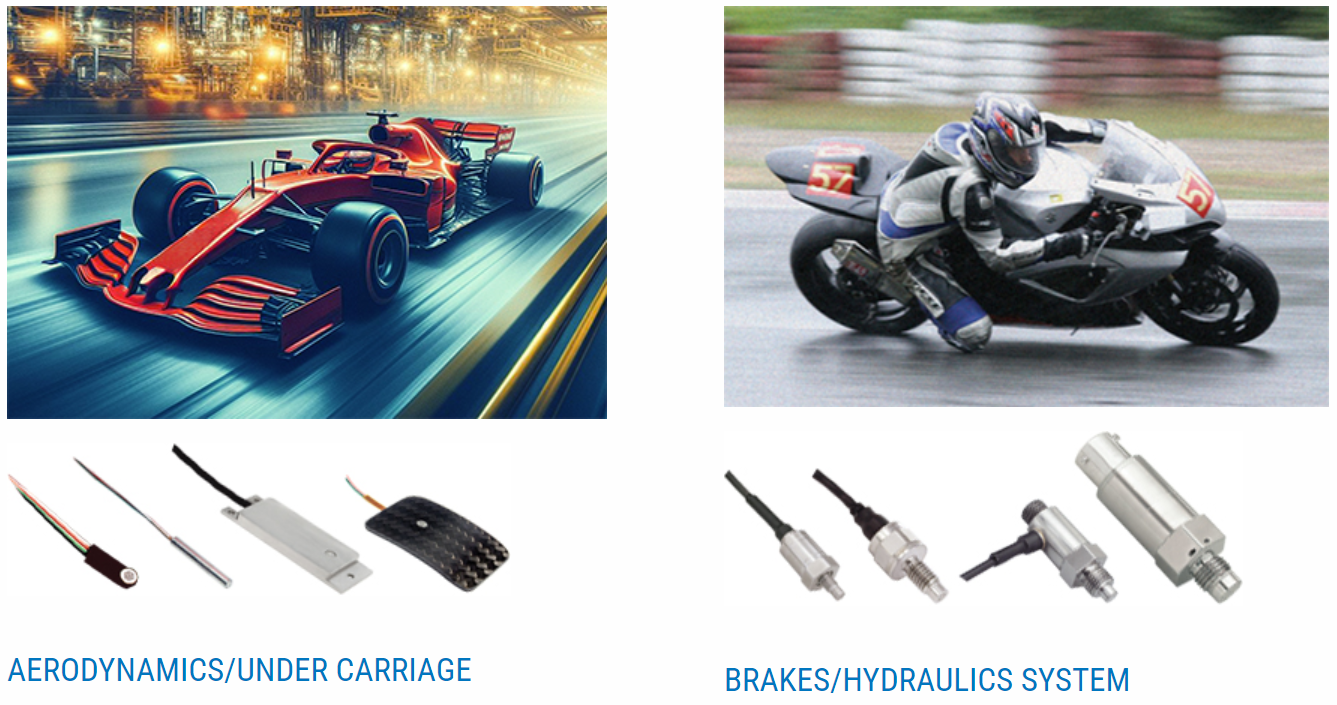

• Aerodynamic Measurements 空气动力学测量

  (涵盖风洞测试与CFD验证，强调流动特性量化分析)


• Fuel System Testing 燃油系统测试

  (包含燃油泵、管路、喷射装置的全系统压力验证)


• Exhaust Gas Measurement 排气气体测量

• Fuel Injection Pressure Measurement 燃油喷射压力测量

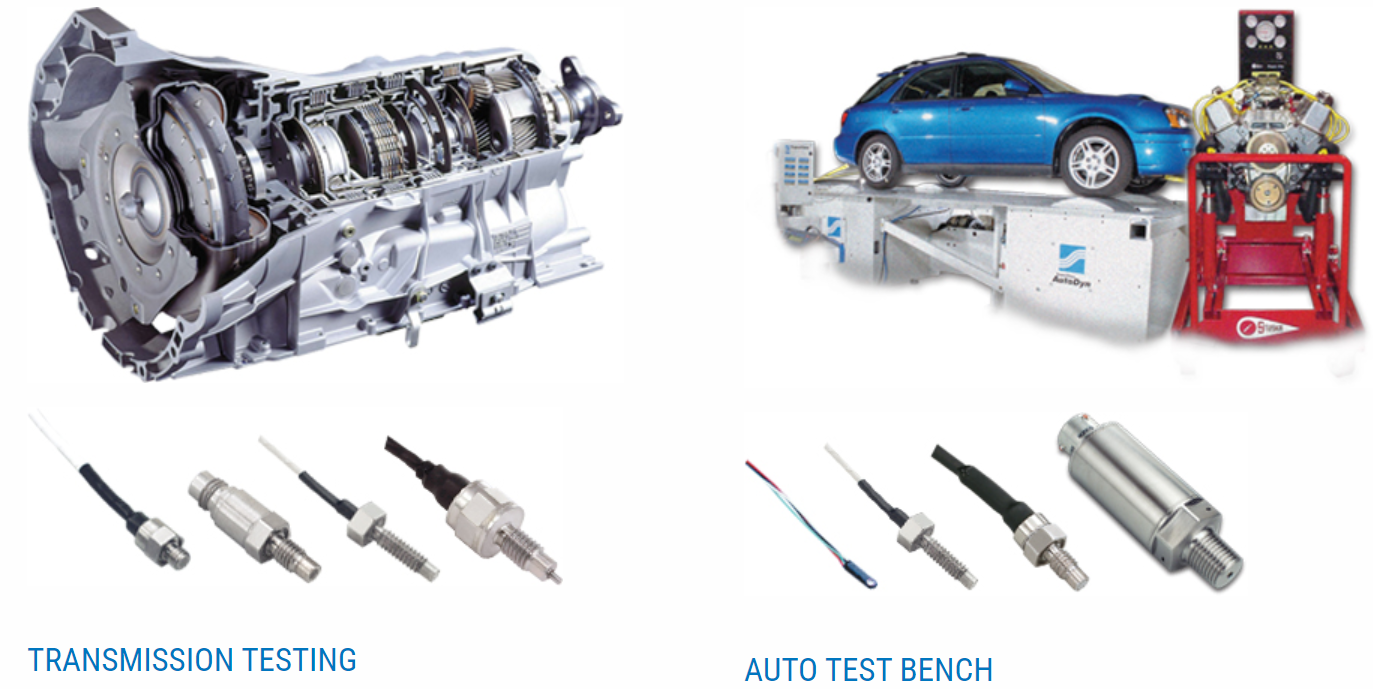

• Automatic Transmission Worm Channel Pressures 自动变速箱蜗杆流道压力检测

  (精准对应行星齿轮组液压控制通道的动态压力监控)

• Lubrication System Testing 润滑系统测试

  (包含油压稳定性、油膜厚度、热传导效率等多维度验证)


• In Cylinder Pressure Measurement 缸内压力测量

Kulite pressure transducers manufactured for the automotive industry fall into three distinct categories: Test Transducers, Process Control Transducers and Automotive Control Transducers.

Test Transducers

Kulite pioneered the miniature and ultra-miniature pressure transducer industry. We introduced the first miniature, piezoresistive transducer, the XCQ-062, in 1968. This transducer and its slightly larger, threaded equivalents found wide use in the aerospace and gas turbine engine world. They set the industry standard for transducers used in testing the aerodynamic performance of rotary and stationary wings as well as compressor and turbine blades.

Now Kulite is also working closely with automotive design engineers. These transducers have been adapted for regular use in the testing of new designs for virtually every fluid system found on a modern commercial vehicle. See the list of such systems in the column above.

Process Control Pressure Transducers

Kulite has also worked closely with the designers of equipment used in the production of commercial vehicles. We have developed flush mount, solid-state pressure transducers for controlling the pressure in paint application systems and structural foam infusion systems among others.

Motorsport Control Systems

Kulite pressure transducers are also widely used in the competitive automobile racing circuits – both Formula One in Europe and the IndyCar circuit in the U.S. Top race teams around the world have chosen Kulite’s high accuracy multifunction designs where performance and reliability are of utmost importance.

Maximum Performance in Minimal Packaging

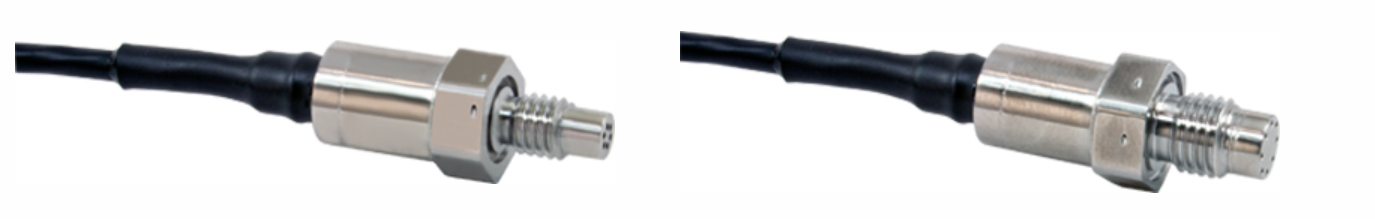

Kulite’s MAKS series of high performance sensors are available in extremely small packages and feature various internal design advantages over competitor products. Both the MAKS-6(T)(X) and MAKS-8(R)(T)(X) are available with embedded RTD temperature sensor. Additionally, the MAKS-8(R)(T)(X) is also available with redundant pressure output – maximum performance in minimal packaging.

The MAKS series provides high proof and burst pressure ratings, very good long-term stability, low hysteresis and non-linearity, excellent repeatability and most importantly, high accuracy. They can be used in a variety of applications such as brake pressure/ABS testing, dynamometer testing, coolant/oil/exhaust/fuel pressures and more.
